Subaru Sambar 5.25" Door Speaker Kit KS4/KS3/KV4/KV3

Subaru Sambar 5.25" Door Speaker Kit KS4/KS3/KV4/KV3

Regular price $85.00 USD
Regular price Sale price $85.00 USD
Sale Sold out

After installing two Kicker 4x6 speakers in my dash and an Alpine head unit I was left wanting more, so I added more. I created a custom two piece speaker mount to house 5.25" Kicker speakers in the front doors. They are angled slightly up and towards the back of the vehicle to help deliver the sound to your ears instead of your legs.

This is printed in the same black ASA plastic as my other models which is heat and UV resistant making it a great material for hot interiors.  Please reach out via the contact page if you would like a color other than black.

This kit requires some DIY, two 7mm holes need to be drilled in each door to mount the speaker rings. The door trim panels will need a hole cut in them as well, and wires need to be routed through the door jambs with the provided boots.

This will fit in 5th gen Subaru Sambars KS4, KS3, KV4, and KV3.

Included in the Kit:
    Left & right door speaker housings
    Left & right door speaker rings
    Twelve door clips to mount the speaker ring (Only need 6)
    Six #6 X 3/8" Phillips screws
    Twelve #6 X 1/2" Phillips screws
    Two door jamb boots for wiring
    Four 1" OD Rubber Grommets

Speakers are not included, I recommend the KICKER 46CSC54 5.25" speakers for these mounts but other similar size or smaller 5.25" speakers should fit.

Note: This kit is meant to fit the flat door panels as pictured and in the instructional video. If your Sambar has a molded door panel, this kit will not fit as expected.

View full details
Your cart
Product Product subtotal Quantity Price Product subtotal
Subaru Sambar 5.25" Door Speaker Kit KS4/KS3/KV4/KV3
Subaru Sambar 5.25" Door Speaker Kit KS4/KS3/KV4/KV3
Subaru Sambar 5.25" Door Speaker Kit KS4/KS3/KV4/KV3
$85.00/ea
$0.00
$85.00/ea $0.00

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Todd

The kit is high quality, and looks very nice. Just be ready for a fairly tedious install. I found it to be well worth the touble. 👍🏻👍🏻

T
Tony Nguyen
Door speaker kit installed on a TT2

The kit comes with everything you need and extras just in case you make mistakes. I installed this kit on a 2003 Sambar TT2. It did not line up perfectly, but with some measuring and a little drilling. It works. I went with the suggested speakers and it is such an upgrade from the stock radio. One thing I did not use for the TT2 model are the rubber boots. The TT2 hole location on the door and in the truck are further away. I used the grommet pieces provided and the stock cover. I cut a hole in the stock cover and routed my speaker wire through. Love the products, keep it up. It’s hard to find nice little upgrades for these kei trucks.

M
Missy S
Flawless. Simple. Love it

This was so simple to install. I ordered the speakers that were recommended, and followed the video step by step. Thank you so much!

C
Chris Constantine
Subaru door speaker Kit

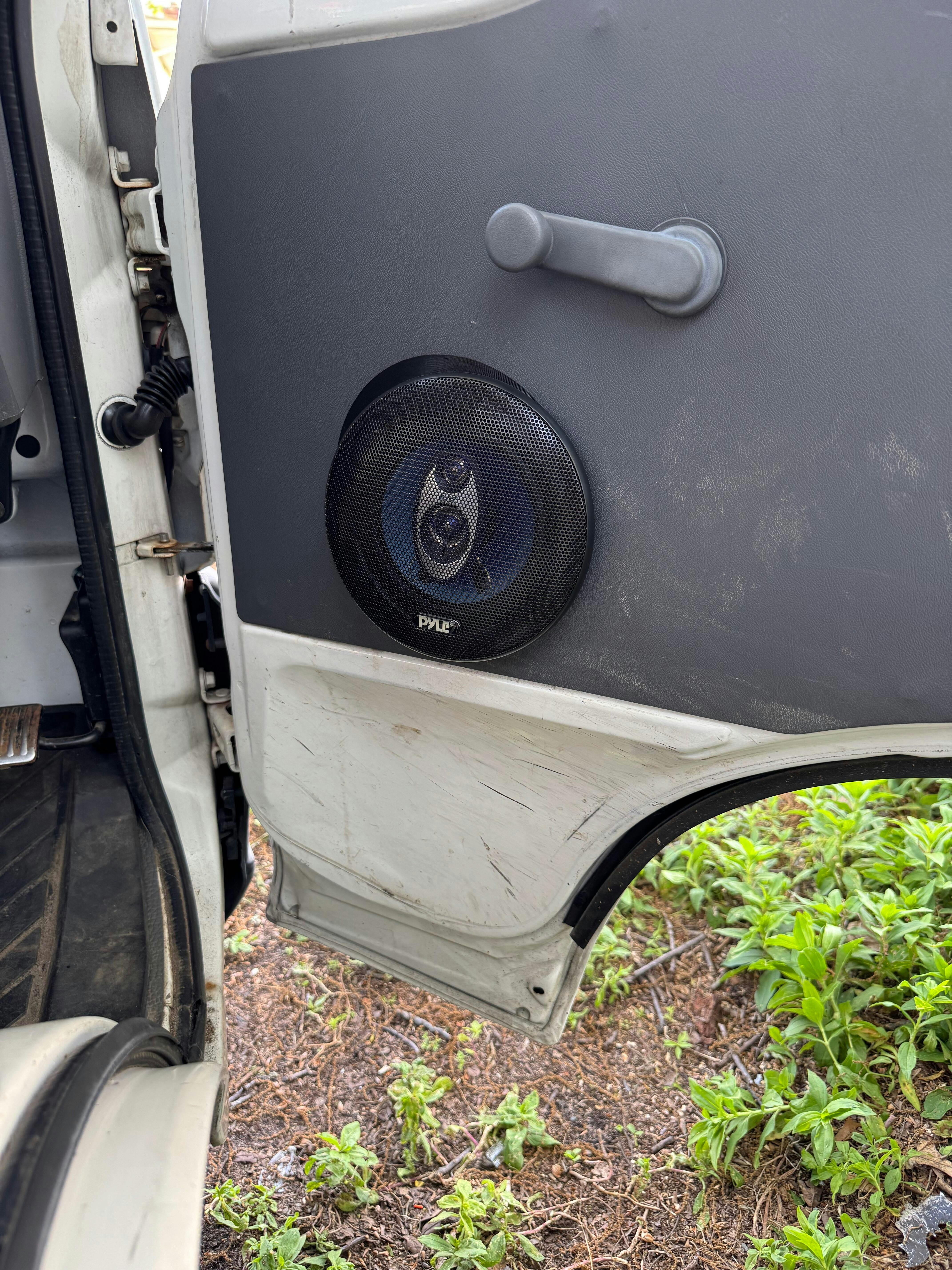

I bought this kit to install in my buddy’s sambar as a birthday surprise. Overall I really liked the kit. It fit well and after trial and error, installation went relatively quick. The first door I did took some time to figure out how everything went together. The video on YouTube helped, but some instructions in the box would have been a lot more helpful. Once I got the one door done, I took both door cards off and put them together to mark out the hole for the other door card. Made the second speaker install much easier and faster. My door cards didn’t have the speaker holes marked, so the tip in the video helped a little bit, but I measured like 5 times and trimmed as needed. Trial and error worked great for me. Take your time! Be sure to have a 7mm drill bit ready. All I had was a 1/4” drill bit that I had to oval out the hole in order to make everything work. The 3d printed parts seem to be printed well and everything fit together well. I didn’t end up using kicker speakers like recommended. I used Pyle speakers. They fit well. The door jam boots were a little loose for my liking, but fit well and seem to do the job well enough. I installed a small digital amp under the passenger seat and some weather proof speakers over the head rests. With the added door speakers, this little truck is a literal rolling speaker box! Overall I’d highly recommend this for anyone looking to add some speakers to their sambar! As long as you have some basic hand tools and a general handyman mindset, you can install this kit! 100% would buy again!

X
X-FACTOR automotive, inc.
Everything is great!

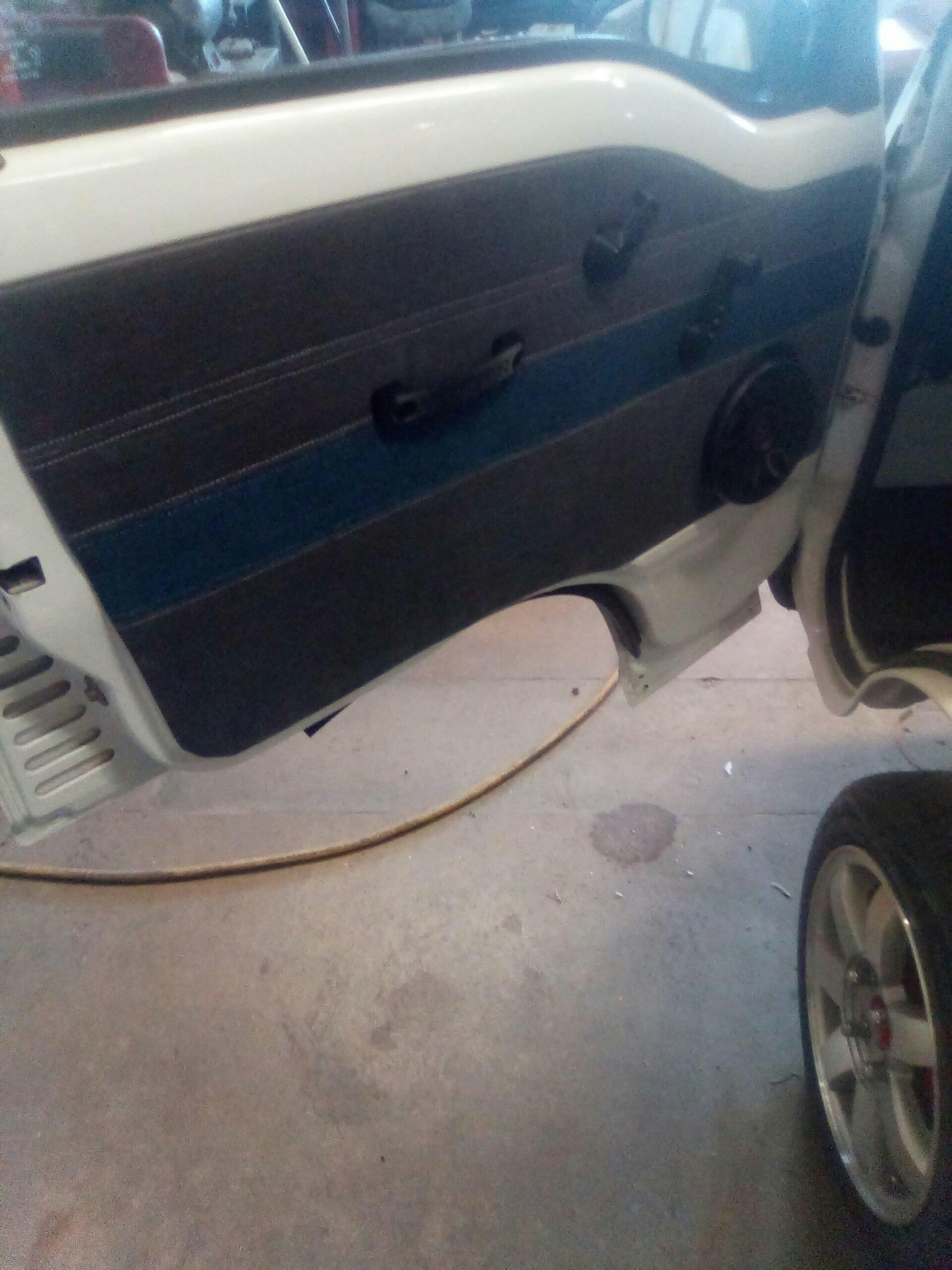

Here is the window crank, door release, pull handle and speaker kit installed with the custom door panels I produce... everything fits as good if not better than the originals and for sure looks better. Great job, Aaron! Highly recommend ALL of his products.
